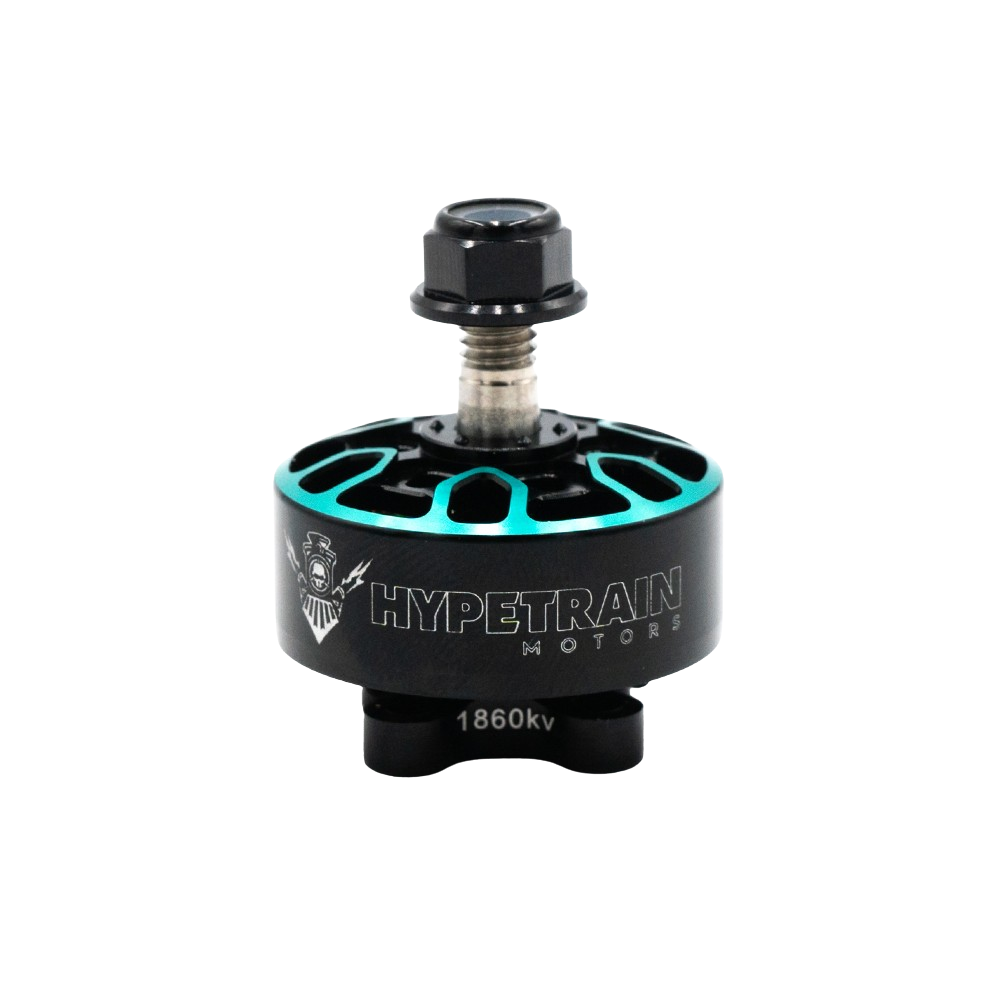

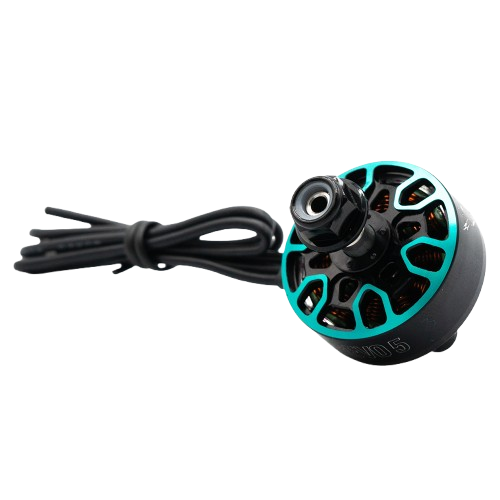

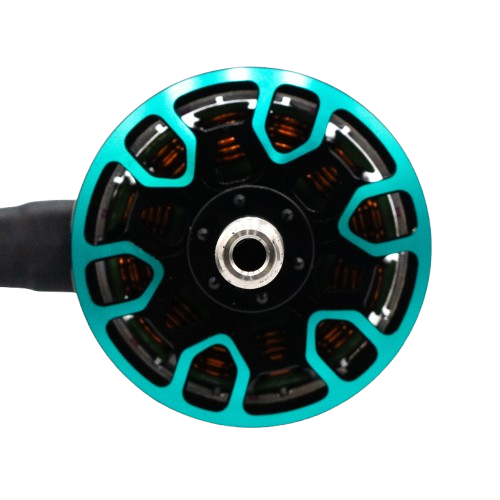

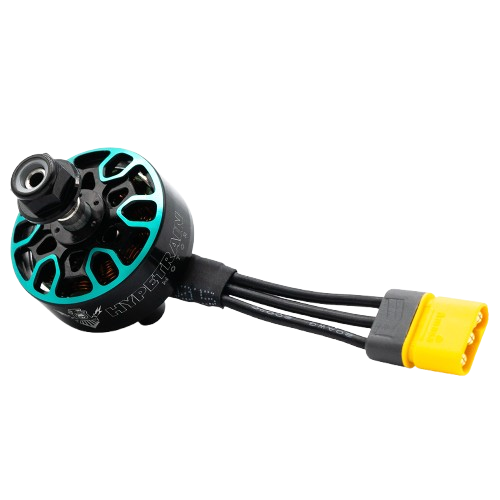

Hypetrain REVO 5
2207 1860/2450kv
Power, Precision, Durability.
The REVO 5 series offers top-tier performance, making it an excellent option for both 5" freestyle and racing builds. It can withstand high levels of stress while maintaining smooth operation.
Available in 1860 & 2450KV for 4S & 6S builds!
TECHNICAL SPECIFICATIONS
Model: Hypetrain REVO 5
KV: 1860
Input Voltage: 6S
Max current: 46A
Idle Current: 0.9A
Internal Resistance: 65mΩ
Motor Dimensions: φ27.3x19.1mm
Stator Dimensions: 2207
Shaft Diameter: φ4mm
Mounting Pattern: 4xM3 16x16mm
Wire Dimensions: 20AWGx150mm
Weight: 34g
FEATURES
7075-T6 Aluminum Alloy Housing
Titanium Alloy Shaft
N52H Curved Magnets
0.15 High Performance Kawasaki Stator
Japanese ISC Bearings
