Hypetrain Blaster 2207 2450KV

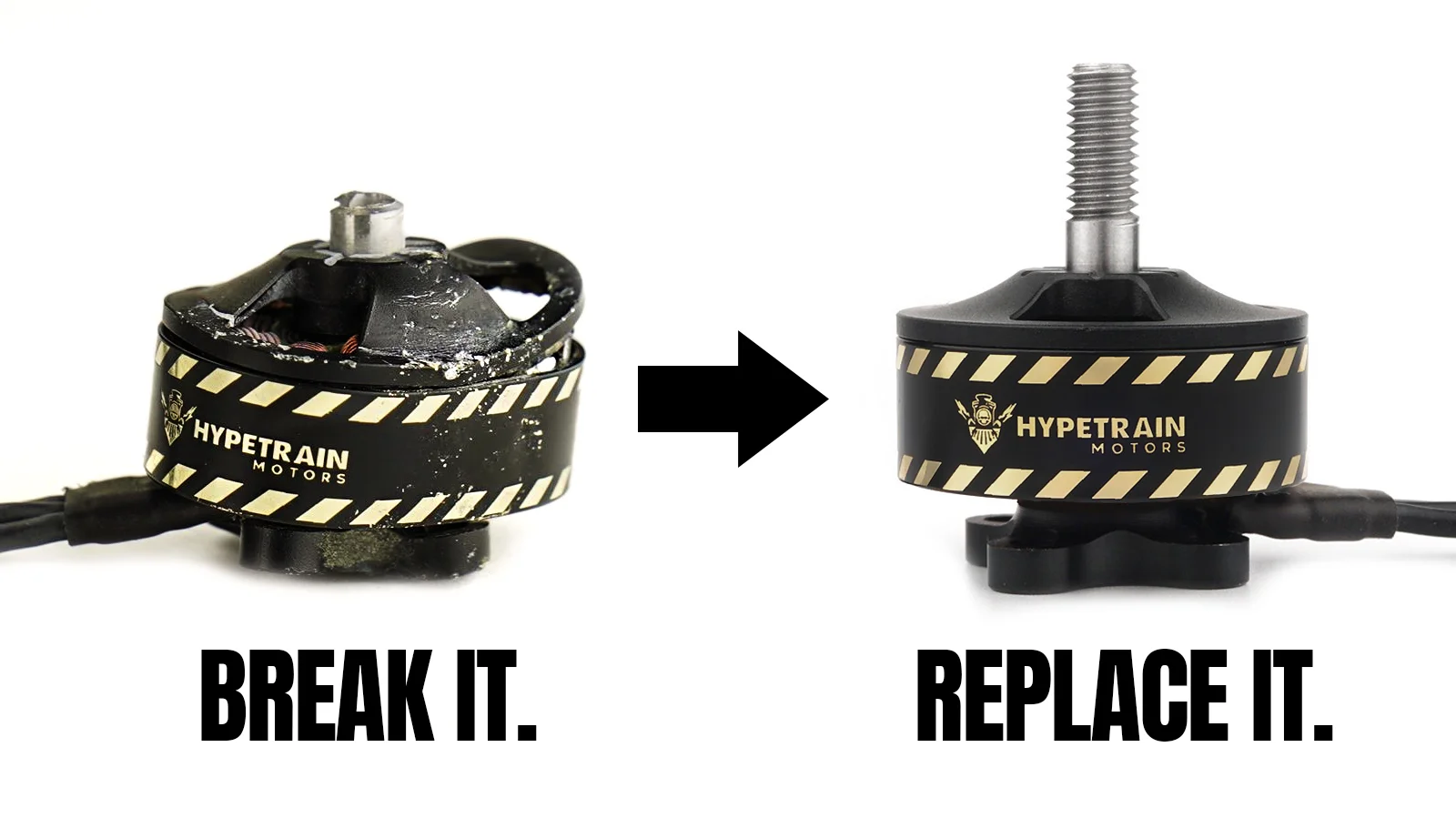

First-ever MOTOR Replacement Program

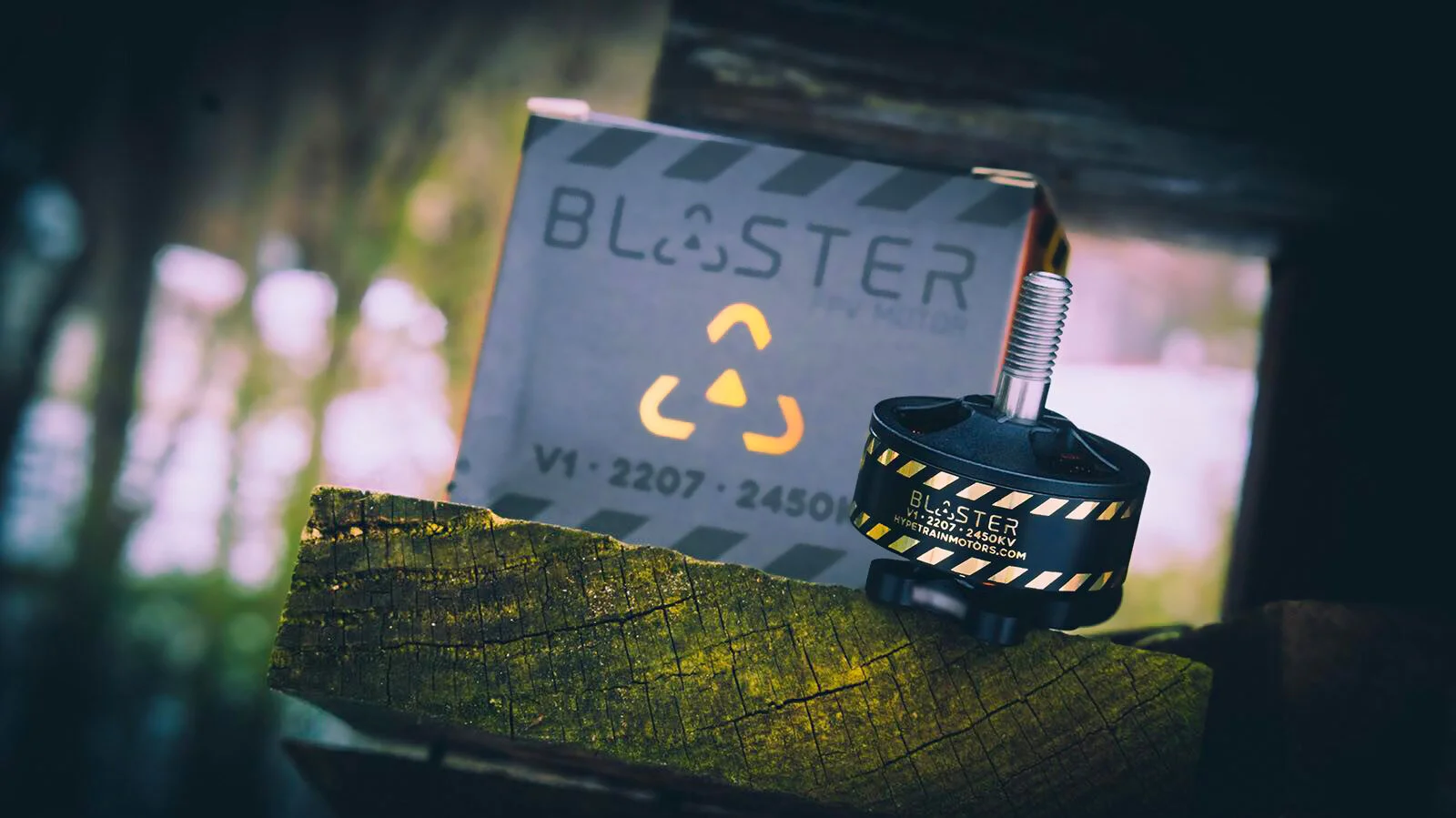

The Hypetrain Blaster Motor resembles a Radiation Hazard symbol, evoking memories of Rotor Riot’s radioactive adventures in Chernobyl. The motor bell is made from aluminum and anodized to a sleek matte black finish, while the steel magnet ring is black with beautiful gold plated highlights. The distinctive bell is supported by a weight saving hollow-core steel shaft, and held in place with a hex shaft screw that facilitates motor service.

Through the implementation of an open, “naked bottom” type aluminum base, the Blaster reduces material excess to a minimum, saving weight while reducing heat accumulation in the stator and windings. The base maintains the standard Hypetrain 16x16mm mounting pattern, which optimizes mounting options, maintaining compatibility with older frames and saving an extra bit of weight.






TECHNICAL SPECIFICATIONS

  • Model: Hypetrain BLASTER

  • Weight: 32 grams

  • KV: 2450KV

  • Stator Diameter: 22 mm

  • Stator Height: 7 mm

  • Propeller Shaft Size: M5

  • Wires: 118 mm 20AWG Silicone Sheath

  • Bell Material: 6061 Aluminum

  • Magnets: N50 Curved Magnets

  • Mounting Screw Pattern: 16×16 mm

  • Input Voltage: 3-5S

  • Bearings: NMB





Package Contents

Each Hypetrain Blaster 2207 2450KV package contains:

  • 1x Hypetrain Blaster 2207 2450KV Motor

  • 1x M5 Nylock Propeller Nut

  • 4x M3 x 6mm Mounting Screws

  • 1x Spare Shaft Screw





GALLERY




*Terms and Conditions Apply. See the Replacement Program Page for details.
